生物其他 DSE、CE 選擇題

1.

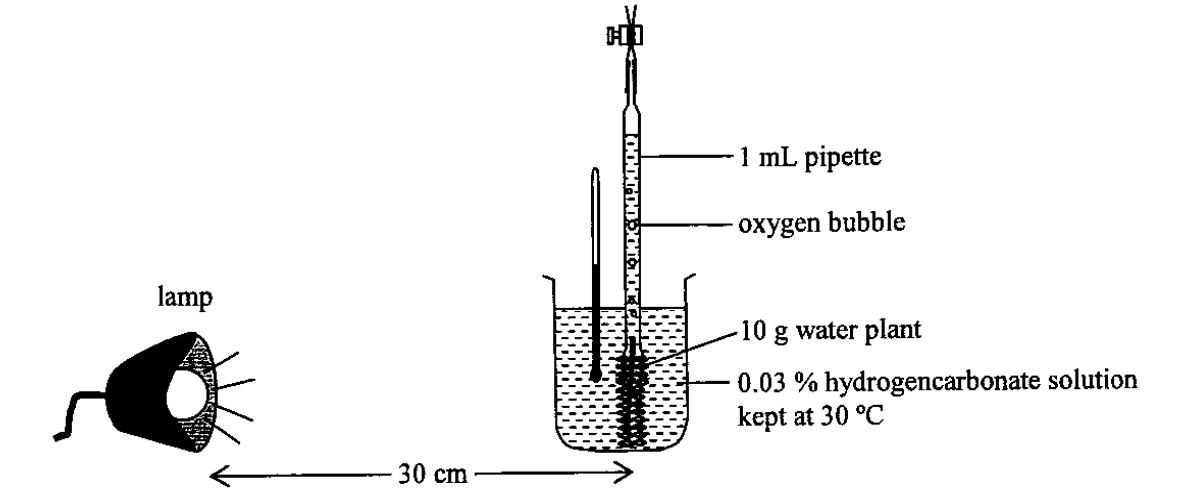

Questions 59 and 60 refer to the diagram below, which shows the experimental set-up used by a student to find out the rate of photosynthesis of a water plant:

0.05 mL oxygen (O₂) was collected after 20 minutes. What is the photosynthetic rate per unit mass of this water plant?

2.

Questions 59 and 60 refer to the diagram below, which shows the experimental set-up used by a student to find out the rate of photosynthesis of a water plant:

Which of the following modifications of the set-up would increase the photosynthetic rate per unit mass of this water plant?

3.

One day, Adam, Brenda, Calvin and Doris were watching a football match of the World Cup. The following are their dialogues about the heartbeat rate of the football players.

(1)Adam: “Hey! The football players need more energy than us at rest, so their heartbeat rate is higher.”

(2)Brenda: “No, they are well-trained. They can breathe deeper such that they have a lower heartbeat rate.”

(3)Calvin: “Wrong! They have a stronger heart to pump blood. So, their heartbeat rates should be lower than ours.”

(4)Doris: “I partially agree with Calvin. They have a lower heartbeat rate because their arteriole walls are stronger to pump more blood.”

Whose view is correct?

4.

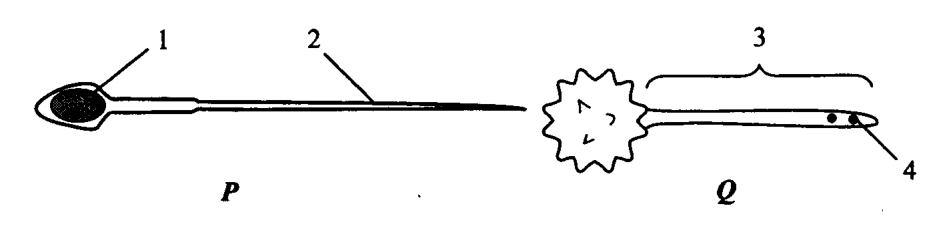

P and Q in the diagram below are the reproductive structures of a mammal and a flowering plant respectively.

Which of the following comparisons between P and Q is correct ?

5.

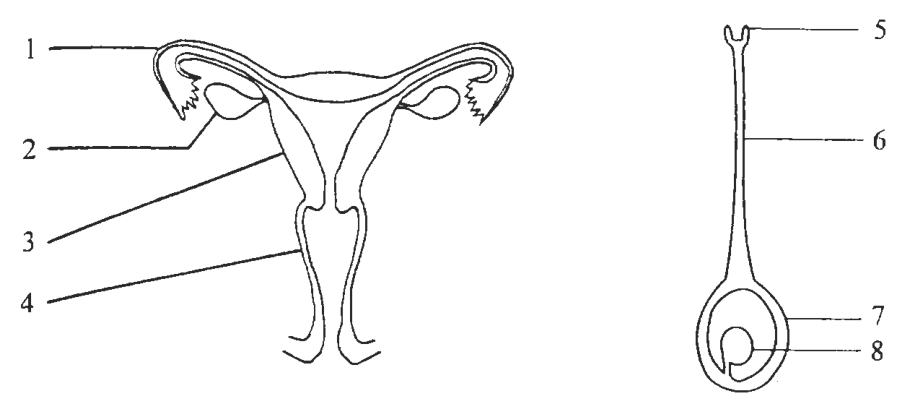

Questions 58 and 59 refer to the diagrams below, which show the human female reproductive system and the carpel of a flower :

Which of the following pairs of structures and their roles in reproduction are correctly matched ?

	Structures	Role
	1 and 8	the site of fertilization
	2 and 7	the site of gamete production
	3 and 7	for supplying food and oxygen to the embryo
	4 and 5	for protecting the male gametes

6.

Questions 58 and 59 refer to the diagrams below, which show the human female reproductive system and the carpel of a flower :

Which of the following parts will increase greatly in size after fertilization ?

7.

Which of the following is a similarity between a human sperm and a male gamete of a flowering plant ?

8.

Which of the following is an example of reproduction involving fertilization ?

9.

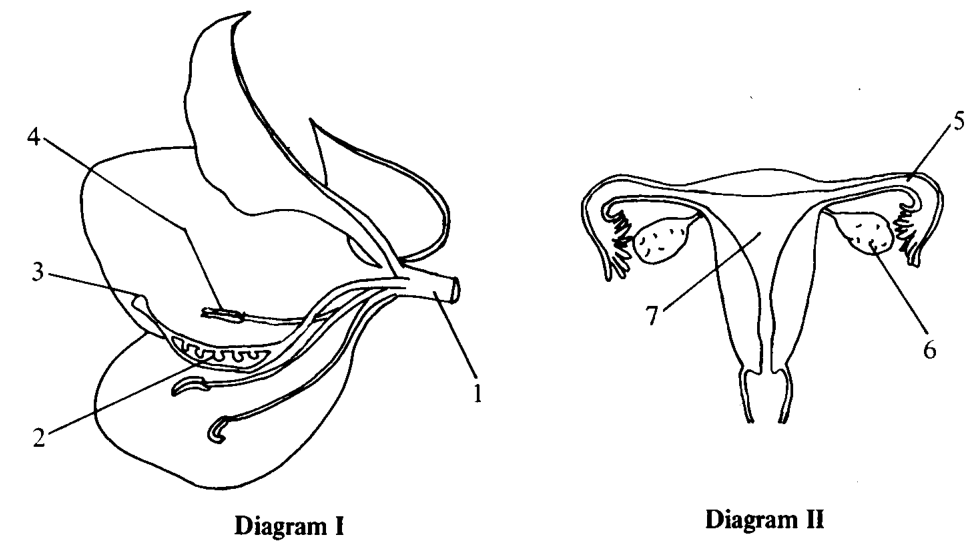

Questions 37 and 38 refer to the diagrams below. Diagram I shows a longitudinal section of a flower. Diagram II shows a section of the human female reproductive system.

Where does fertilization normally occur ?

	Diagram I	Diagram II
	3	5
	2	5
	3	7
	2	7

10.

Questions 37 and 38 refer to the diagrams below. Diagram I shows a longitudinal section of a flower. Diagram II shows a section of the human female reproductive system.

Which structure of the flower is comparable to structure 6 in humans ?
